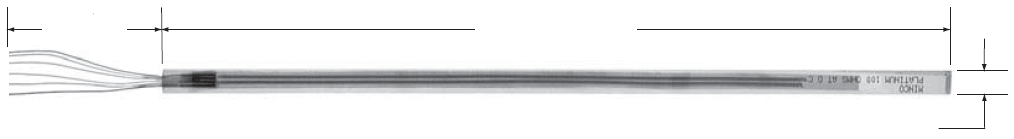

Dual element stator winding RTDs provide extra protection
for motors and generators. The second element can be a
back up in case of damage, or use one element for input to a
temperature display at the machine and the other for control
room monitoring.
Standard models are available with thickness options of 0.030"
to 0.125", with sensing elements to match most instrumentation.
180°C (356°F), Class H
Class H: High temperature epoxy glass
3200 VRMS at 60 Hz, tested between the leads and external flat body surface for 1 to 5 seconds.
| Element | Model for thickness: | |||||
|---|---|---|---|---|---|---|
| 0.030" * | 0.050" | 0.078" | 0.125" | |||
| Platinum (0.00392 TCR) 100 Ω ±0.5% at 0°C | S9030PAPA | S9050PAPA | S9078PAPA | S9125PAPA | ||
| Platinum (0.00385 TCR) 100 Ω ±0.12% at 0°C (Meets EN60751, Class B) | S9030PDPD | S9050PDPD | S9078PDPD | S9125PDPD | ||
| Platinum (0.00385 TCR) 100 Ω ±0.5% at 0°C | S9030PEPE | S9050PEPE | S9078PEPE | S9125PEPE | ||
| Copper (0.00427 TCR) 10 Ω ±0.2% at 25°C | S9030CACA | S9050CACA | S9078CACA | S9125CACA | ||
| Nickel (0.00672 TCR) 120 Ω ±0.5% at 0°C | S9030NANA | S9050NANA | S9078NANA | S9125NANA | ||
