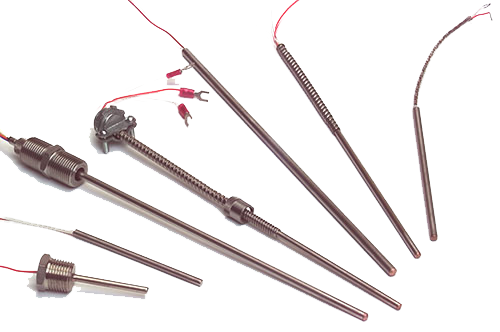

Bearing RTD and Thermocouple Probe Style Sensors
We are a MINCO stocking distributor, we have thousands of sensors IN STOCK!

• Tip-sensitive bearing RTD and Thermocouple probes (rated -50 to 260°C/ -58 to 500F) feature a fast-responding copper tip with a stainless steel or fibreglass sheath.
• Bayonet mount bearing probes
• Probe diameter options include 0.188", 0.215", 0.250"
• Wide selection of adjustable spring-loaded fittings and connection heads available from stock
• Cut-to-length option lets you adjust bearing probe lengths in the field

View PDF Specs Request a Quote

Products

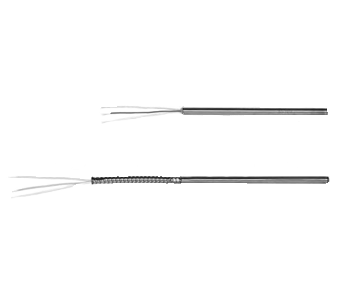

Tip-Sensitive Copper Tip

The probe sensing tip is constructed of copper alloy which is twenty times more conductive than stainless..read more

Request a Quote

Tip-Sensitive Bayonet Mount

Bayonet mounting provides easy and inexpensive springloaded installation of probes into solids..read more

Request a Quote

Tip-Sensitive Isolated Tip

Copper alloy tip for fast time response and increased tipsensitivity. Accurate sensing to 260°C (500°F), 155....read more

Request a Quote

Related Products

Temperature Probe Accessories			Varies by Model	For: RTD or Thermocouple	For: Single or Dual	Inquire
Teflon Encapsulation Tubing			-70 to 260 °C* -94 to 500°F* *Varies by model	Provides dielectric insulation or chemical resistence for probes		Inquire
Bearing Embedment Sensors			-184 to 260°C -300 to 500°F	RTD or Thermcouple	Single or Dual
How to Cut Probes to Length				Many probe models above can be cut to length using an ordinary tubing cutter. Cut-to-length models are marked in the PDF catalogue pages above with the icon shown to the left.
	SensorCalc: RTD and Thermocouple Resistance or mV vs Temperature Table Generator
