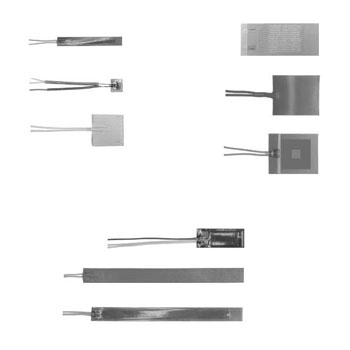

These MINCO RTDs have a very flexible wire-wound element that averages temperatures along their length to eliminate point measurement errors. Install in electric motor or generator windings or adhere them to any surface. The S3238 model was specifically designed to sense stator temperatures in electric motors and generators. An alternative to the “stick” sensors, the S3238 mounts on the end turns of formed-coil stator windings or within random-wound motor windings.
Thin, flexible designs for fast response surface sensing of electric motor or generator stator windings, or any surface.
Rugged laminated construction
Polyimide, silicone rubber or Mylar™ insulation
All models are RoHS compliant
5 Year Limited Warranty
| Wire-wound Element Thermal-Ribbons MODELS THAT WE STOCK | ||||||||||
RIBBON SIZE |
LEADS |
STOCK STATUS* |
PRICE | |||||||
| PART NUMBER | TCR |
MAX TEMP |
L |
W |
THICK |
# |
AWG |
LENGTH |
||
| 100 OHM PLATINUM ELEMENT | ||||||||||
| Wire Wound Element Models - Flexible | ||||||||||
| S651PDZT24A | .00385 |
200°C |
.300" |
.300" |
.025" |
3 |
28 |
96" |
 |
 |
| S3238PAZT96UA | .00392 |
200°C |
1.25" |
.500" |
.020" |
3 |
26 |
96" |
|
|
| S385PD12Z36A | .00385 |
220°C |
1.25" |
1.0" |
.035" |
3 |
24 |
36" |
|
|
| S385PE22Z36A | .00385 |
220°C |
1.25" |
1.0" |
.035" |
3 |
24 |
36" |
|
|
| S386PD12Z36A | .00385 |
220°C |
4.0" |
.375" |
.040" |
3 |
26 |
36" |
|
|
| S386PE22Z36A | .00385 |
220°C |
4.0" |
.375" |
.040" |
3 |
26 |
36" |
|
|
| S467PDZ36A | .00385 |
220°C |
1.5" |
.500" |
.040" |
3 |
26 |
36" |
|
|
| 10 OHM COPPER ELEMENT | ||||||||||
| S3238CAZT96UA | .00427 |
200°C |
1.25" |
.500" |
.020" |
3 |
26 |
96" |
|
|
| 120 OHM NICKEL ELEMENT | ||||||||||
| S3238NAZT96UA | .00672 |
200°C |
1.25" |
.500" |
.020" |
3 |
26 |
96" |
|
|
| Model | Dimensions (W x L x T) |
Temperature | Leadwire | Get a Quote |
|---|---|---|---|---|
| S38 | 0.20 x 1.50 x 0.030" (5.1 x 38.1 x 0.8 mm) |
-200 to 200°C -328 to 392°F | AWG 34, PTFE insulated |  |
| S651 | 0.30 x 0.30 x 0.025" (7.6 x 7.6 x 0.7 mm) |
-200 to 200°C -328 to 392°F | AWG 28, PTFE insulated | |
| S25 | 0.75 x 0.75 x 0.04" (19 x 19 x 1.0 mm) |
-200 to 150°C -328 to 302°F | AWG 30, PTFE insulated | |
| Model | Dimensions (W x L x T) |
Temperature | Leadwire | Get a Quote |
|---|---|---|---|---|
| S3238 | 0.50 x 1.25 x 0.050" (12.7 x 31.8 x 1.3 mm) |
-73 to 200°C -100 to 392°F | AWG 26, PTFE insulated | |
| S34 S386 |
0.375 x 4.00 x 0.075" (9.5 x 101.6 x 1.9 mm) |
-62 to 220°C -80 to 428°F | AWG 26, PTFE insulated | |
| S35 | 0.375 x 4.00 x 0.065" (9.5 x 101.6 x 1.7 mm) |
-200 to 200°C -328 to 392°F | AWG 26, PTFE insulated | |
| S2 | 0.375 x 4.00 x 0.065" (9.5 x 101.6 x 1.7 mm) |
-100 to 150°C -148 to 302°F | AWG 26, PTFE insulated | |
| Model | Dimensions (W x L x T) |
Temperature | Leadwire | Get a Quote |
|---|---|---|---|---|
| S17422 | 0.79 x 1.87 x 0.055" (20 x 47.5 x 1.4 mm) |
-73 to 200°C -100 to 392°F | AWG 24, PTFE insulated | |
| S32 S385 |
1.00 x 1.25 x 0.090" (25.4 x 31.8 x 2.3 mm) |
-62 to 220°C -80 to 428°F | AWG 24, Silicone rubber insulated | |
| S39 | 1.00 x 1.25 x 0.065" (25.4 x 31.8 x 1.7 mm) |
-200 to 200°C -328 to 392°F | AWG 26, PTFE insulated | |
