Electrically isolated sensing tip for “hot” bearings. Accurate sensing to 260°C (500°F), 155°C (311°F) for fiberglass probes. Copper alloy tip for fast time response and increased tip sensitivity.
1000 volts RMS at 60 Hz for 30 seconds, between case sections, 1 mA max. leakage current
30 psi (2.1 bar).
Withstands 10 to 2000 Hz at 20 G’s minimum per MIL-STD-202, Method 204, Test Condition D
Withstands 100 G’s minimum sine wave shock of 8 milliseconds duration.

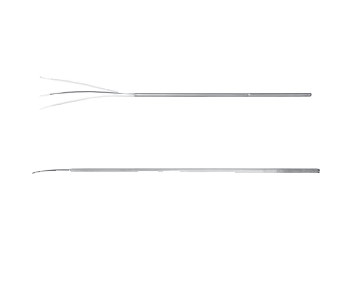

TIP SENSITIVE ISOLATED TIP RTD AND THERMOCUPLE PROBE MODELS THAT WE STOCK
|
||||||||||
Note: We can add SS armour and/or bayonet cap/spring to any of the probes below |
||||||||||
| Probes are Cut-to-Length with a simple tubing cutter or specify length at time of order | ||||||||||
| 100 OHM PLATINUM ELEMENT | ||||||||||
| Electrically Isolated Tip Probes - Stainless Steel Sheath with Isolator 3" from tip | ||||||||||
| S52PA180Z36 | 100 |
.00392 |
Single |
.215" |
18" |
3 |
22 |
36" |
 |
 |
| S52PA240Z36 | 100 |
.00392 |
Single |
.215" |
24" |
3 |
22 |
36" |
|
|
| S852PD240Z36 | 100 |
.00385 |
Single |
.215" |
24" |
3 |
22 |
36" |
|
|
| Electrically Isolated Probes - Fiberglass Sheath | ||||||||||
| S101659PA240Z72 | 100 |
.00392 |
Single |
.188" |
24" |
3 |
22 |
72" |
|
|
| S101659PD240Z72 | 100 |
.00385 |
Single |
.188" |
24" |
3 |
22 |
72" |
|
|
| 10 OHM COPPER ELEMENT | ||||||||||
| Electrically Isolated Tip Probes - Stainless Steel Sheath with Isolator 3" from tip | ||||||||||
| S52CA240Z36 | 10 |
.00427 |
Single |
.215" |
24" |
3 |
22 |
36" |
|
|
| 120 OHM NICKEL ELEMENT | ||||||||||
| Electrically Isolated Tip Probes - Stainless Steel Sheath with Isolator 3" from tip | ||||||||||
| S52NA240Z36 | 120 |
.00672 |
Single |
.215" |
24" |
3 |
22 |
36" |
|
|
| THERMOCOUPLE TYPE J,K & T | ||||||||||
| Electrically Isolated Tip Probes - Stainless Steel Sheath with Isolator 3" from tip | ||||||||||
| TC2198JU240T36 | J |
Single |
.188" |
24"' |
2 |
20 |
36" |
|
|
|
| TC2198TU240T36 | T |
Single |
.188" |
24"' |
2 |
20 |
36" |
|
|
|
|
Other elements, models and sizes available for fast shipment. |
*Subject to prior sale | |||||||||
| RTD sensing element | Model | ||
|---|---|---|---|
| Platinum (0.00392 TCR) 100 Ω ±0.5% at 0°C | S52PA | ||
| Platinum (0.00385 TCR) 100 Ω ±0.1% at 0°C | S852PD | ||
| Platinum (0.00385 TCR) 100 Ω ±0.5% at 0°C | S882PE | ||
| Copper (0.00427 TCR) 10 Ω ±0.2% at 25°C | S52CA | ||
| Nickel (0.00672 TCR) 120 Ω ±0.5% at 0°C | S52NA | ||
| RTD sensing element | Model | ||
|---|---|---|---|
| Platinum (0.00392 TCR) 100 Ω ±0.5% at 0°C | S101659PA | ||
| Platinum (0.00385 TCR) 100 Ω ±0.1% at 0°C | S101659PD | ||
| Platinum (0.00385 TCR) 100 Ω ±0.5% at 0°C | S101659PE | ||
| Copper (0.00427 TCR) 10 Ω ±0.2% at 25°C | S101659CA | ||
| Nickel (0.00672 TCR) 120 Ω ±0.5% at 0°C | S101659NA | ||
