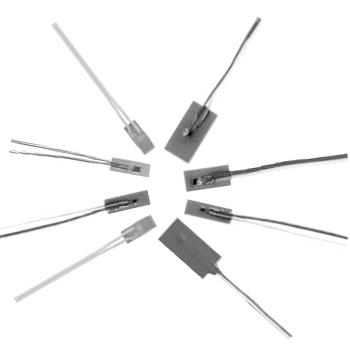

Introduce these reduced sensors anyplace for precise point detecting and quick reaction. All Thermal-Tab modules utilize a flimsy film RTD component.
Fast response surface sensing in aerospace, medical and industrial devices
Rugged lamination construction
Polyimide, silicone rubber or Mylar™ insulation
All models are RoHS compliant
| THERMAL-TAB™ RTD AND THERMISTOR MODELS THAT WE STOCK | ||||||||||
RIBBON SIZE |
LEADS |
STOCK STATUS* |
PRICE | |||||||
| PART NUMBER | TCR |
MAX TEMP |
L |
W |
THICK |
# |
AWG |
LENGTH |
||
| 100 OHM PLATINUM ELEMENT | ||||||||||
| Thin Film Ceramic Element Models - Miniature size but not flexible | ||||||||||
| S665PDZT40A | .00385 |
155°C |
.500" |
.200" |
.080" |
3 |
26 |
40" |
 |
 |
| S17624PDZ40A | .00385 |
200°C |
.600" |
.200" |
.080" |
3 |
26 |
40" |
|
|
| S667 | .00385 |
200°C |
.600" |
.200" |
.080" |
3 |
26 |
40" |
|
|
| S100724 | .00385 |
200°C |
.600" |
.200" |
.080" |
3 |
26 |
40" |
|
|
| TS665 | .00385 |
-50 to 125°C |
.600" |
.200" |
.080" |
3 |
26 |
40" |
|
|
| Sensing Elements | Models | Get a Quote | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 100 OHM PLATINUM ELEMENT | S665 | S17624 | S100820 | S667 | S100725 | S100724 | S100723 | S100721 |  |
| Sensing Elements | Models | Get a Quote | |
|---|---|---|---|
| NTC thermistor 50k Ω ±1% at 25°C | TS665 | TS667 | |
| NTC thermistor 10k Ω ±1% at 25°C | TS665 | TS667 | |
